Negative pressure wound therapy system

Negative pressure wound therapy system including vacuum pump with dressing kit

npwt system.jpg


ryk-30 npwt system device.jpg

Item name: negative pressure wound therapy system

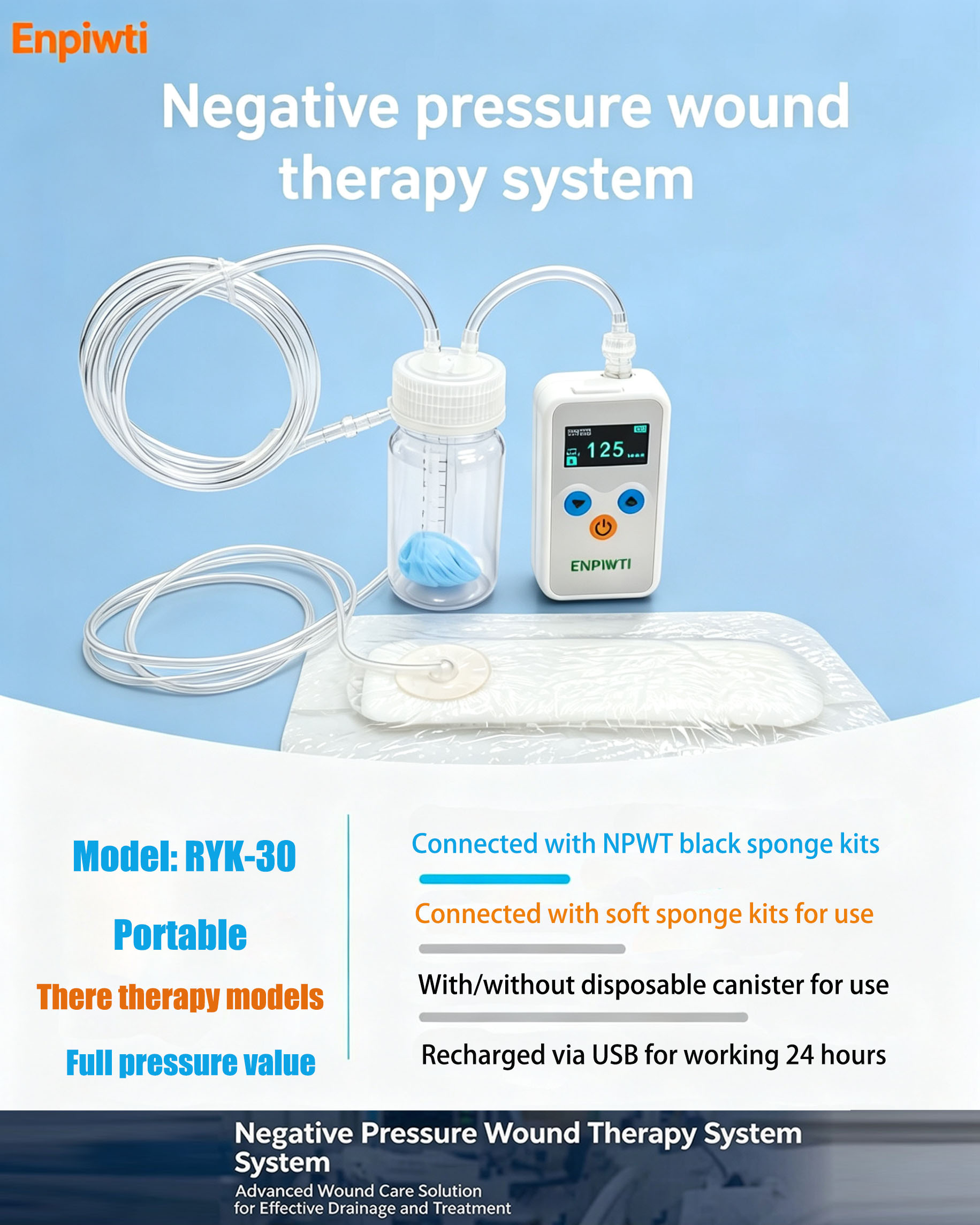

Model: RYK-30

Negative   Pressure Wound Therapy Device
Dimensions:50×35×102mm (2 in × 1.4 in   ×4 in) (without canister)
Material:ABS
Weight:160g (~0.35 lb) (without   canister)
Pressure   value::-40~-225mmHg(-5.3~-30kPa)
Limit negative   pressure:<-248mmHg(-33kPa)
Air flow rate:<4 liters/min
Therapy   Models:Continuous   Mode/Intermittent Mode/Dynamic Mode
Advantage   features:USB connector
Display screen   size:0.96 inch
Battery Run   Life:8 hours
Battery Charge   Time:1.5hours
Electrical   Power In/output:AC100~240V,50/60Hz, DC18V   ,≥2A
Battery   Specifications:DC3.7V ,1300mAh
Alarm   function:Air leakage alarm/Blockage   pipes alarm/Low charge alarm
Accessories:Disposable   canister & NPWT dressing kit
Storage   Conditions
Temperature   Range::-10℃~50℃
Relative   Humidity Range≤95% R.H
OthersNo corrosive gas, good   ventilation
Operating   Conditions
Temperature   Range5≤80℃~40℃
Relative   Humidity Range% R.H
Atmospheric   pressure50kPa~110kPa
Warranty   period2 Years

Device Description

The Enpiwti Negative Pressure Wound Therapy (NPWT) System is a suction pump with soft dressing

kit used to help promote wound healing through Negative Pressure Wound Therapy (NPWT).

The Enpiwti device is reusable and portable pump intended to be used in acute, extended and home care settings.

The Enpiwti machine provides adjustable negative pressure with constant and intermittent therapy

modes. Enpiwti NPWT System comprises the Enpiwti device and with accessories:

Enpiwti canisters (need to customize), without canister, Enpiwti NPWT dressing kit with tubing and

connector.

Indications for Use

The Enpiwti Negative Pressure Wound Therapy (NPWT) System is indicated for patients who

would benefit from a suction device (Negative Pressure Wound Therapy) as when used on open

wounds it creates an environment that promotes wound healing by secondary or tertiary

(delayed primary) intention by preparing the wound bed for closure, reducing edema, promoting

granulation tissue formation and perfusion, and by removing exudates and infectious material.

When used on closed surgical incisions, the Enpiwti NPWT System is also intended to manage

the environment of surgical incisions that continue to drain following sutured or stapled

closure by maintaining a closed environment and removing exudate via the application of

Negative Pressure Wound Therapy (NPWT).

The Enpiwti NPWT System is intended for use in acute, extended and home care settings.

The Enpiwti NPWT System is appropriate for the following indications:

- Acute or subacute wounds

- Chronic wounds

- Dehisced wounds

- Pressure ulcers

- Diabetic/Neuropathic ulcers

- Venous insufficiency ulcers

- Traumatic wounds

- Partial thickness burns

- Flaps and grafts

- Closed surgical incisions
